3. Hyperledger Fabric 설치하기










Go 언어는 패키지로 설치하지 않고 압축파일을 다운받아 설치한다.

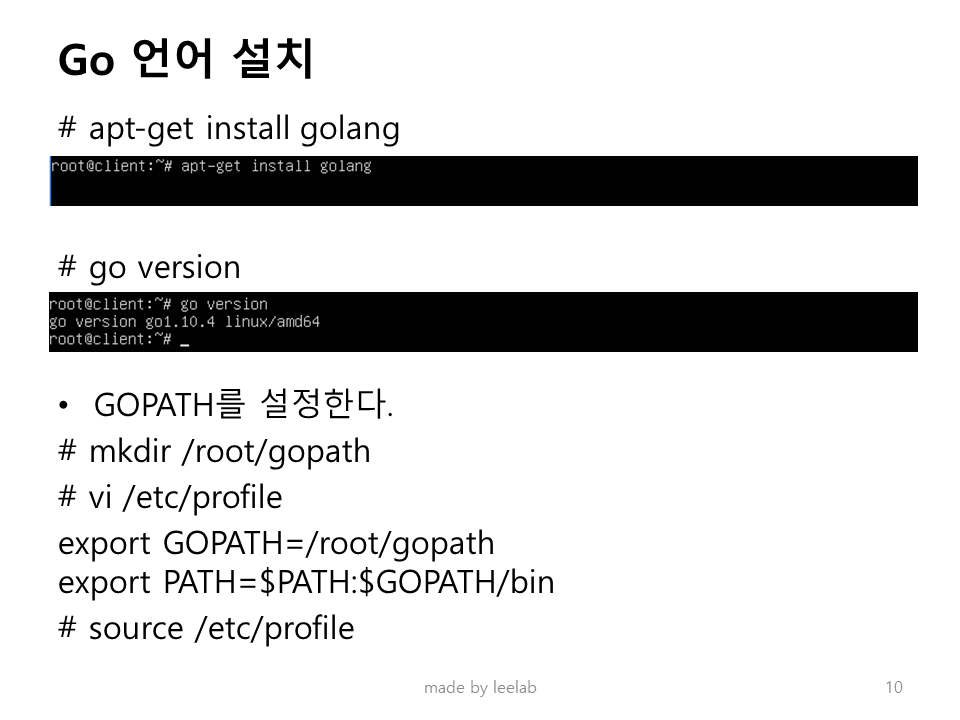

10.PNG패키지로 설치된 go언어는 지운다.



root@client:~# go version
root@client:~# apt-get remove golang

소스를 다운받아  설치한다.



root@client:~# wget https://storage.googleapis.com/golang/go1.10.4.linux-amd64.tar.gz

root@client:~# tar xvfz go1.10.4.linux-amd64.tar.gz

root@client:~# vi /etc/profile
export GOROOT=/root/go
export GOPATH=/root/gopath
export PATH=$PATH:$GOROOT/bin:$GOPATH/bin



root@client:~# source /etc/profile

root@client:~# go version
go version go1.10.4 linux/amd64
root@client:~#

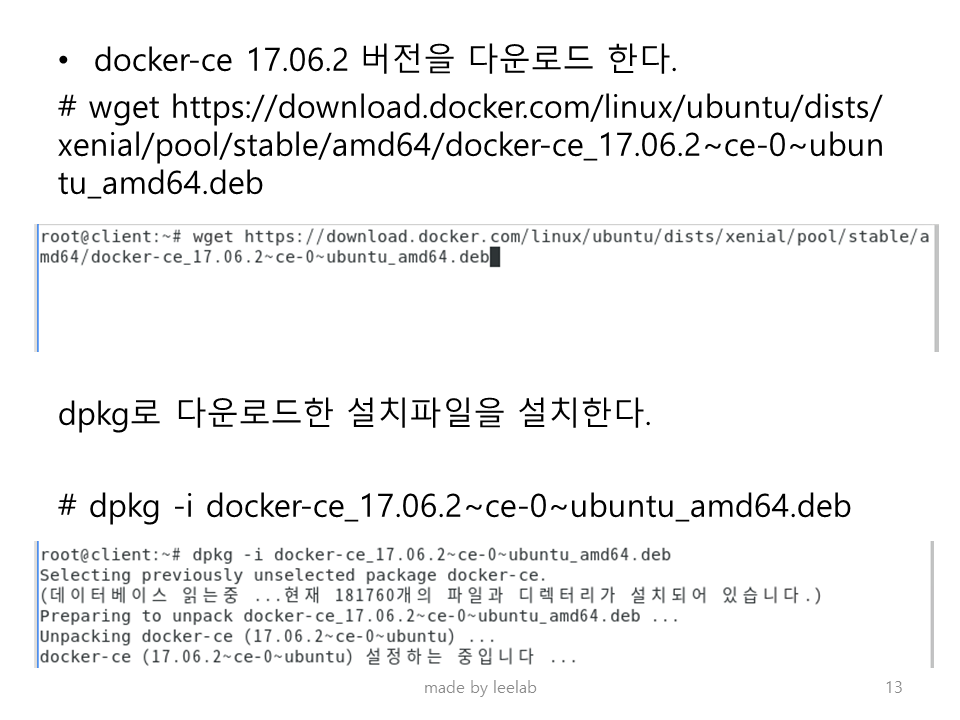

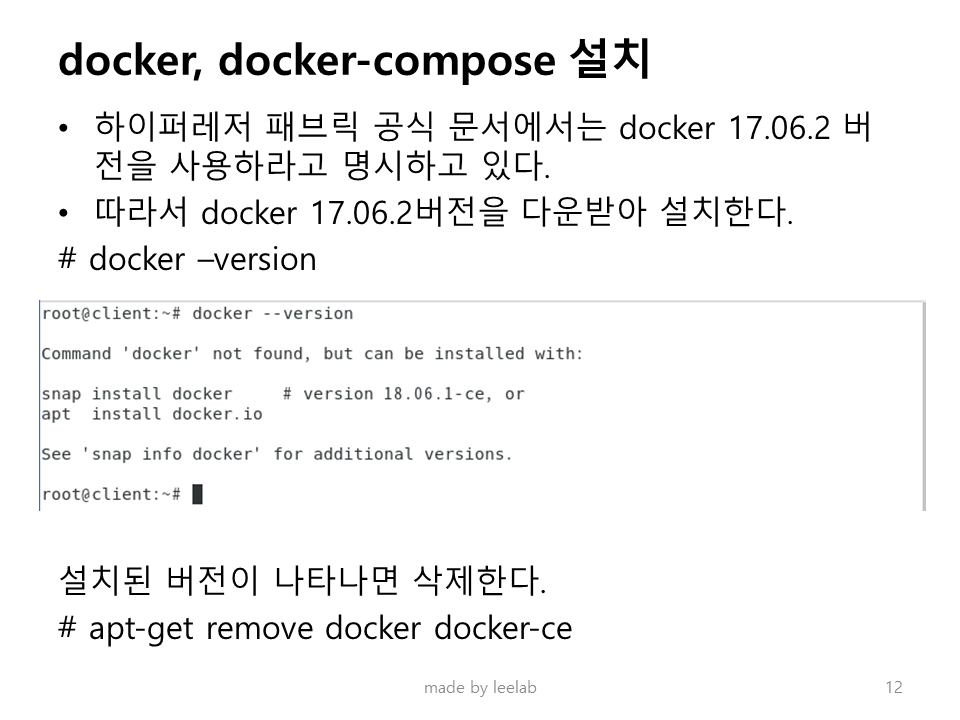

root@client:~# wget https://download.docker.com/linux/ubuntu/dists/xenial/pool/stable/amd64/docker-ce_17.06.2~ce-0~ubuntu_amd64.deb
root@client:~# dpkg -i docker-ce_17.06.2~ce-0~ubuntu_amd64.deb

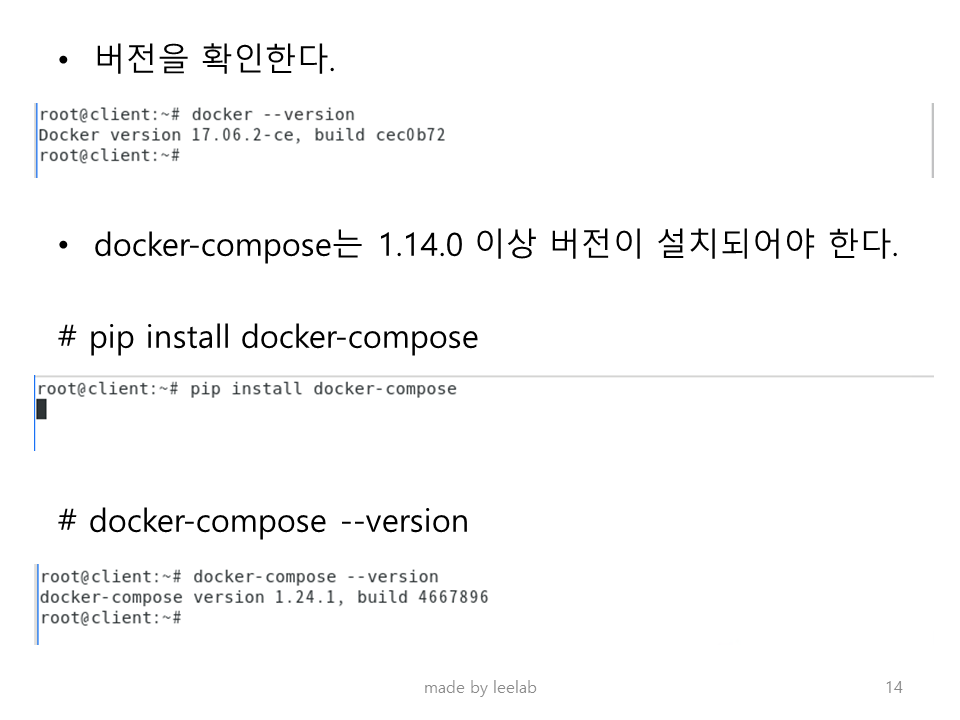

root@client:~# pip install docker-compose
root@client:~# docker-compose --version
docker-compose version 1.25.0, build b42d419

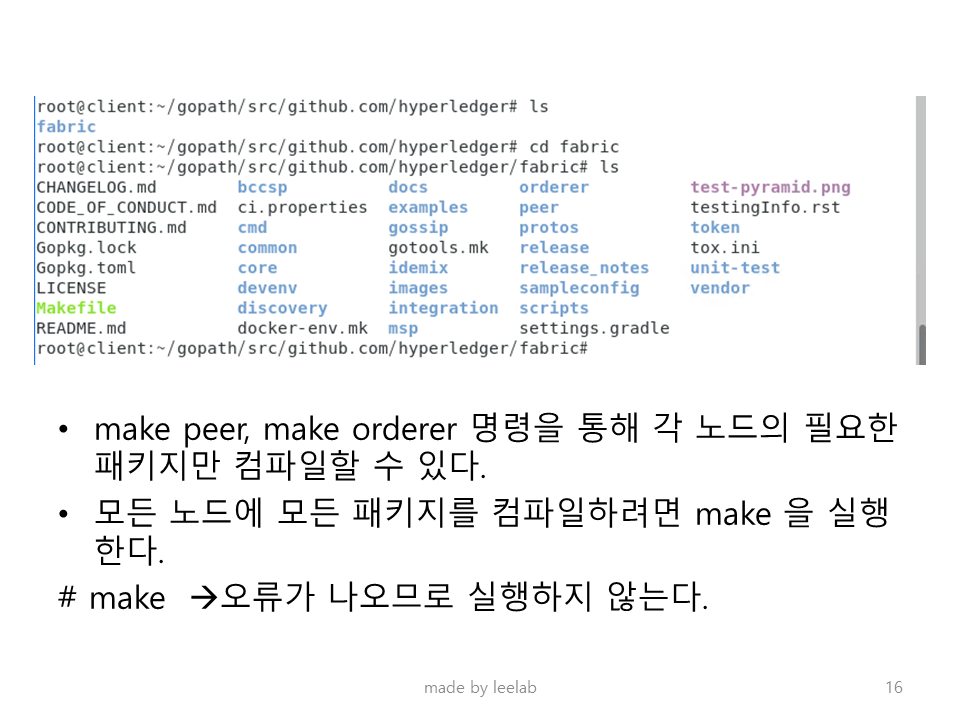

root@client:~/gopath/src/github.com/hyperledger# git clone -b release-1.3 https://github.com/hyperledger/fabric
'fabric'에 복제합니다...
remote: Enumerating objects: 43, done.
remote: Counting objects: 100% (43/43), done.
remote: Compressing objects: 100% (33/33), done.
remote: Total 115490 (delta 11), reused 42 (delta 10), pack-reused 115447
오브젝트를 받는 중: 100% (115490/115490), 98.75 MiB | 5.37 MiB/s, 완료.
델타를 알아내는 중: 100% (77295/77295), 완료.
root@client:~/gopath/src/github.com/hyperledger#

root@client:~/gopath/src/github.com/hyperledger/fabric# git reset --hard d942308df6302d3510e835bad62f861ad854b4b3
HEAD의 현재 위치는 d942308df입니다 [FAB-12440] disable goimports in linting

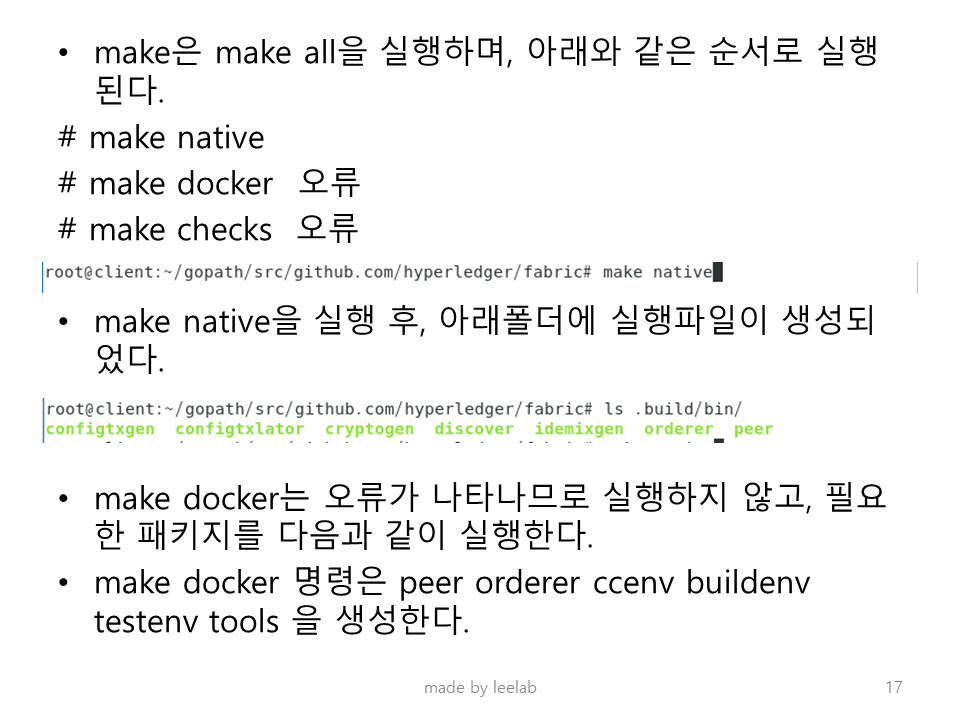

root@client:~/gopath/src/github.com/hyperledger/fabric# make native

.build/bin/peer
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/metadata.Version=1.3.1 -X github.com/hyperledger/fabric/common/metadata.CommitSHA=d942308df -X github.com/hyperledger/fabric/common/metadata.BaseVersion=0.4.13 -X github.com/hyperledger/fabric/common/metadata.BaseDockerLabel=org.hyperledger.fabric -X github.com/hyperledger/fabric/common/metadata.DockerNamespace=hyperledger -X github.com/hyperledger/fabric/common/metadata.BaseDockerNamespace=hyperledger -X github.com/hyperledger/fabric/common/metadata.Experimental=false" github.com/hyperledger/fabric/peer
Binary available as .build/bin/peer
.build/bin/orderer
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/metadata.Version=1.3.1 -X github.com/hyperledger/fabric/common/metadata.CommitSHA=d942308df -X github.com/hyperledger/fabric/common/metadata.BaseVersion=0.4.13 -X github.com/hyperledger/fabric/common/metadata.BaseDockerLabel=org.hyperledger.fabric -X github.com/hyperledger/fabric/common/metadata.DockerNamespace=hyperledger -X github.com/hyperledger/fabric/common/metadata.BaseDockerNamespace=hyperledger -X github.com/hyperledger/fabric/common/metadata.Experimental=false" github.com/hyperledger/fabric/orderer
Binary available as .build/bin/orderer
.build/bin/configtxgen
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/tools/configtxgen/metadata.CommitSHA=d942308df" github.com/hyperledger/fabric/common/tools/configtxgen
Binary available as .build/bin/configtxgen
.build/bin/cryptogen
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/tools/cryptogen/metadata.CommitSHA=d942308df" github.com/hyperledger/fabric/common/tools/cryptogen
Binary available as .build/bin/cryptogen
.build/bin/idemixgen
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/tools/idemixgen/metadata.CommitSHA=d942308df" github.com/hyperledger/fabric/common/tools/idemixgen
Binary available as .build/bin/idemixgen
.build/bin/configtxlator
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/common/tools/configtxlator/metadata.CommitSHA=d942308df" github.com/hyperledger/fabric/common/tools/configtxlator
Binary available as .build/bin/configtxlator
.build/bin/discover
CGO_CFLAGS=" " GOBIN=/root/gopath/src/github.com/hyperledger/fabric/.build/bin go install -tags "" -ldflags "-X github.com/hyperledger/fabric/cmd/discover/metadata.Version=1.3.1-snapshot-d942308df" github.com/hyperledger/fabric/cmd/discover
Binary available as .build/bin/discover
root@client:~/gopath/src/github.com/hyperledger/fabric#  ls .build/bin/
configtxgen  configtxlator  cryptogen  discover  idemixgen  orderer  peer
root@client:~/gopath/src/github.com/hyperledger/fabric#

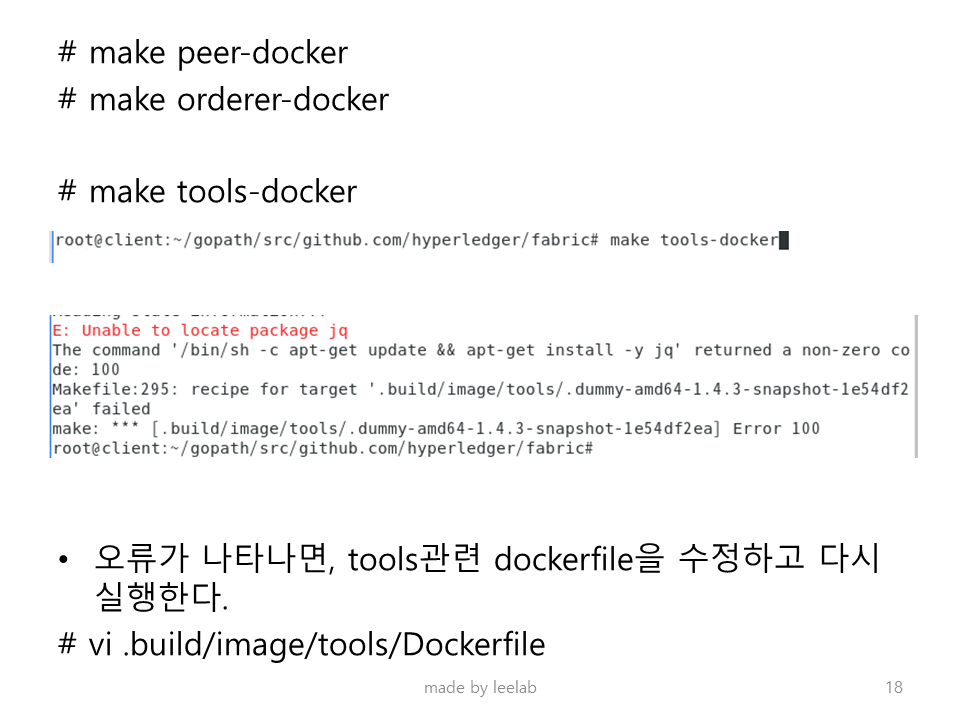

root@client:~/gopath/src/github.com/hyperledger/fabric# make peer-docker
root@client:~/gopath/src/github.com/hyperledger/fabric# make orderer-docker


root@client:~/gopath/src/github.com/hyperledger/fabric# make tools-docker

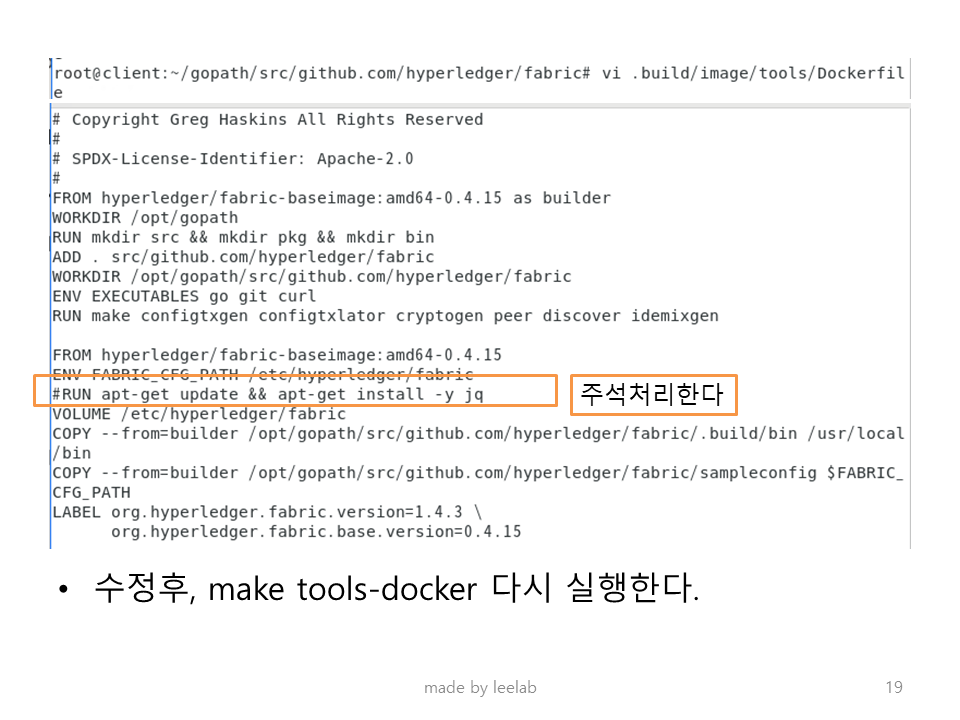

root@client:~/gopath/src/github.com/hyperledger/fabric# vi .build/image/tools/Dockerfile
# Copyright Greg Haskins All Rights Reserved
#
# SPDX-License-Identifier: Apache-2.0
#
FROM hyperledger/fabric-baseimage:amd64-0.4.13 as builder
WORKDIR /opt/gopath
RUN mkdir src && mkdir pkg && mkdir bin
ADD . src/github.com/hyperledger/fabric
WORKDIR /opt/gopath/src/github.com/hyperledger/fabric
ENV EXECUTABLES go git curl
RUN make configtxgen configtxlator cryptogen peer discover idemixgen

FROM hyperledger/fabric-baseimage:amd64-0.4.13
ENV FABRIC_CFG_PATH /etc/hyperledger/fabric
#RUN apt-get update && apt-get install -y jq
VOLUME /etc/hyperledger/fabric
COPY --from=builder /opt/gopath/src/github.com/hyperledger/fabric/.build/bin /usr/local/bin
COPY --from=builder /opt/gopath/src/github.com/hyperledger/fabric/sampleconfig $FABRIC_CFG_PATH
LABEL org.hyperledger.fabric.version=1.3.1 \
      org.hyperledger.fabric.base.version=0.4.13
~

root@client:~/gopath/src/github.com/hyperledger/fabric# make tools-docker

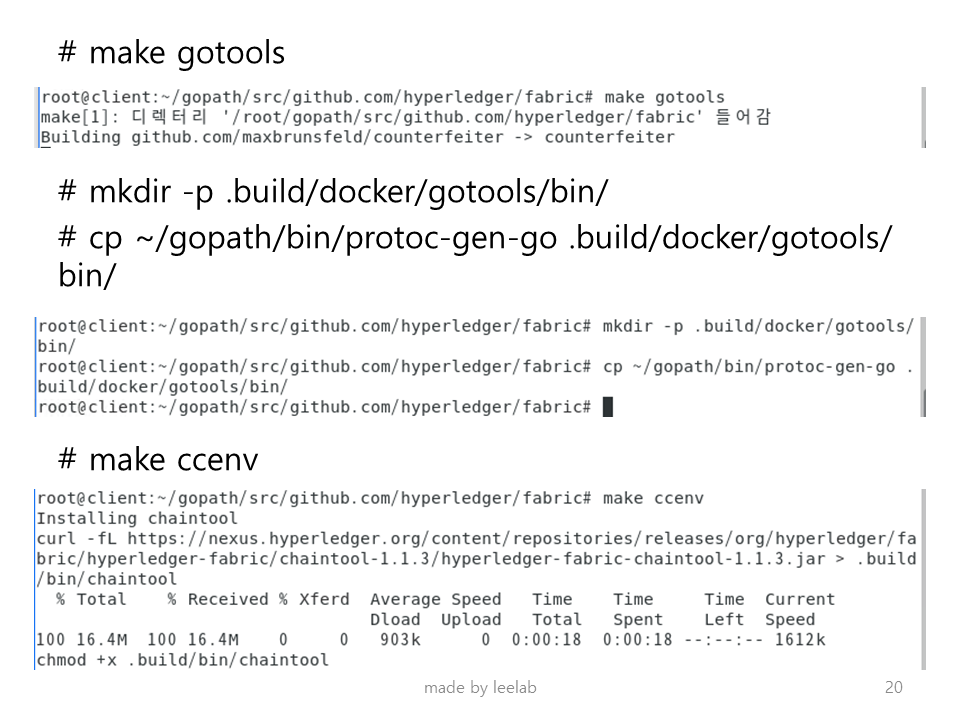

root@client:~/gopath/src/github.com/hyperledger/fabric# make gotools
root@client:~/gopath/src/github.com/hyperledger/fabric# mkdir -p .build/docker/gotools/bin/
root@client:~/gopath/src/github.com/hyperledger/fabric# cp ~/gopath/bin/protoc-gen-go .build/docker/gotools/bin/

root@client:~/gopath/src/github.com/hyperledger/fabric# make ccenv

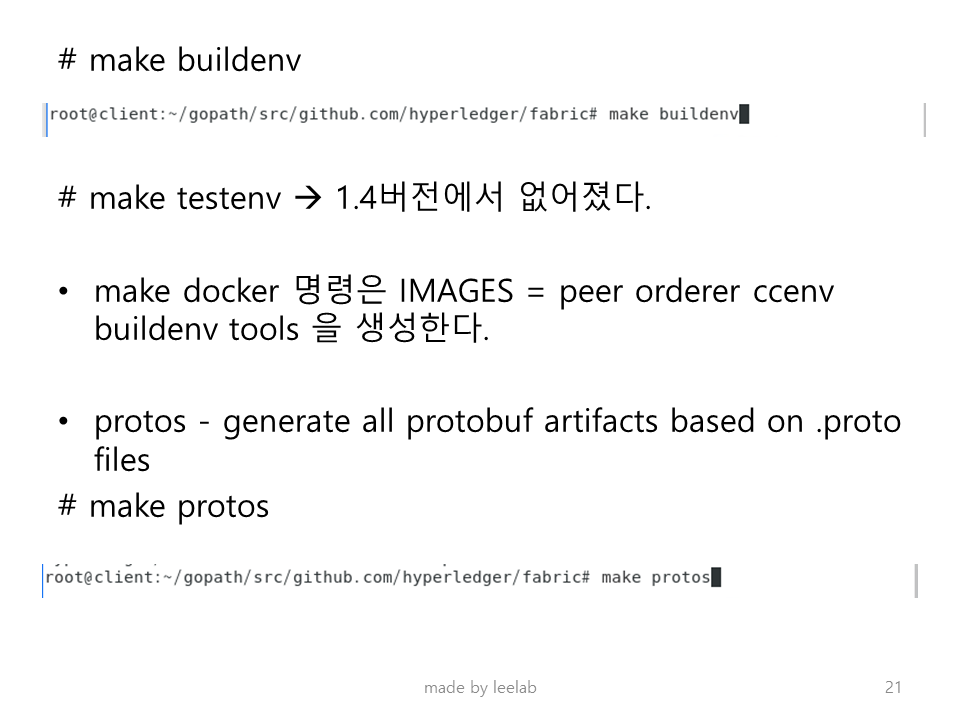

root@client:~/gopath/src/github.com/hyperledger/fabric# make buildenv

root@client:~/gopath/src/github.com/hyperledger/fabric# make testenv

root@client:~/gopath/src/github.com/hyperledger/fabric# vi .build/image/testenv/payload/install-softhsm2.sh
#!/bin/bash
#
# Copyright IBM Corp. All Rights Reserved.
#
# SPDX-License-Identifier: Apache-2.0
#

set -e

ARCH=`uname -m`

if [ $ARCH = "s390x" ]; then
  echo "deb http://ftp.us.debian.org/debian sid main" >> /etc/apt/sources.list
fi

# Install softhsm2 package
#apt-get update
#apt-get -y install softhsm2

# Create tokens directory
#mkdir -p /var/lib/softhsm/tokens/

#Initialize token
".build/image/testenv/payload/install-softhsm2.sh" 24 lines, 476 characters


root@client:~/gopath/src/github.com/hyperledger/fabric# make testenv
root@client:~/gopath/src/github.com/hyperledger/fabric# mkdir -p /var/lib/softhsm/tokens/
root@client:~/gopath/src/github.com/hyperledger/fabric# softhsm2-util --init-token --slot 0 --label "ForFabric" --so-pin 1234 --pin 98765432
The token has been initialized.
root@client:~/gopath/src/github.com/hyperledger/fabric#
root@client:~/gopath/src/github.com/hyperledger/fabric# docker images
REPOSITORY                     TAG                              IMAGE ID            CREATED             SIZE
hyperledger/fabric-testenv     amd64-1.3.1-snapshot-d942308df   474d50233dcb        2 minutes ago       1.4GB
hyperledger/fabric-testenv     amd64-latest                     474d50233dcb        2 minutes ago       1.4GB
hyperledger/fabric-testenv     latest                           474d50233dcb        2 minutes ago       1.4GB
<none>                         <none>                           94f57866ac00        4 minutes ago       1.4GB
hyperledger/fabric-buildenv    amd64-1.3.1-snapshot-d942308df   9a32072f3ad1        5 minutes ago       1.35GB
hyperledger/fabric-buildenv    amd64-latest                     9a32072f3ad1        5 minutes ago       1.35GB
hyperledger/fabric-buildenv    latest                           9a32072f3ad1        5 minutes ago       1.35GB
hyperledger/fabric-ccenv       amd64-1.3.1-snapshot-d942308df   1a75be83a3f5        6 minutes ago       1.38GB
hyperledger/fabric-ccenv       amd64-latest                     1a75be83a3f5        6 minutes ago       1.38GB
hyperledger/fabric-ccenv       latest                           1a75be83a3f5        6 minutes ago       1.38GB
hyperledger/fabric-tools       amd64-1.3.1-snapshot-d942308df   2bcbc07aeb56        9 minutes ago       1.45GB
hyperledger/fabric-tools       amd64-latest                     2bcbc07aeb56        9 minutes ago       1.45GB
hyperledger/fabric-tools       latest                           2bcbc07aeb56        9 minutes ago       1.45GB
<none>                         <none>                           859513f247ef        13 minutes ago      1.61GB
hyperledger/fabric-orderer     amd64-1.3.1-snapshot-d942308df   9840436885c4        20 minutes ago      145MB
hyperledger/fabric-orderer     amd64-latest                     9840436885c4        20 minutes ago      145MB
hyperledger/fabric-orderer     latest                           9840436885c4        20 minutes ago      145MB
hyperledger/fabric-peer        amd64-1.3.1-snapshot-d942308df   60a85493de80        24 minutes ago      151MB
hyperledger/fabric-peer        amd64-latest                     60a85493de80        24 minutes ago      151MB
hyperledger/fabric-peer        latest                           60a85493de80        24 minutes ago      151MB
hyperledger/fabric-baseimage   amd64-0.4.13                     27240288889f        10 months ago       1.34GB
hyperledger/fabric-baseos      amd64-0.4.13                     f0fe49196c40        10 months ago       124MB
root@client:~/gopath/src/github.com/hyperledger/fabric#

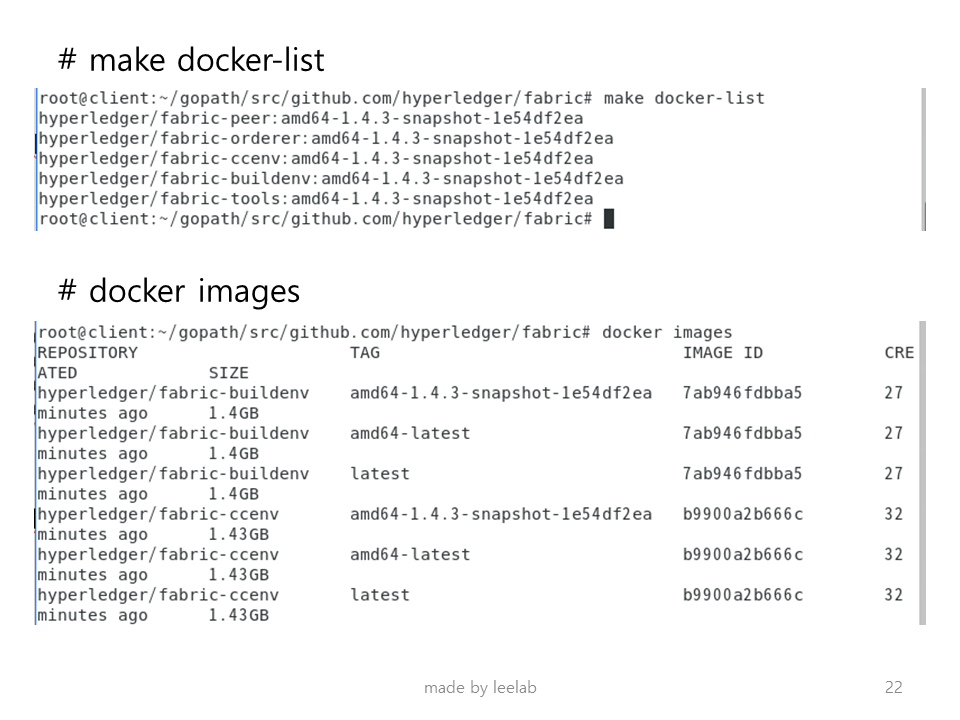

root@client:~/# docker images
REPOSITORY                     TAG                              IMAGE ID            CREATED             SIZE
hyperledger/fabric-buildenv    amd64-1.4.3-snapshot-1e54df2ea   7ab946fdbba5        2 hours ago         1.4GB
hyperledger/fabric-buildenv    amd64-latest                     7ab946fdbba5        2 hours ago         1.4GB
hyperledger/fabric-buildenv    latest                           7ab946fdbba5        2 hours ago         1.4GB
hyperledger/fabric-ccenv       amd64-1.4.3-snapshot-1e54df2ea   b9900a2b666c        2 hours ago         1.43GB
hyperledger/fabric-ccenv       amd64-latest                     b9900a2b666c        2 hours ago         1.43GB
hyperledger/fabric-ccenv       latest                           b9900a2b666c        2 hours ago         1.43GB
hyperledger/fabric-tools       amd64-1.4.3-snapshot-1e54df2ea   70a539906010        2 hours ago         1.52GB
hyperledger/fabric-tools       amd64-latest                     70a539906010        2 hours ago         1.52GB
hyperledger/fabric-tools       latest                           70a539906010        2 hours ago         1.52GB
<none>                         <none>                           e120ac7e233c        2 hours ago         1.68GB
hyperledger/fabric-orderer     amd64-1.4.3-snapshot-1e54df2ea   12cd81ee965b        2 hours ago         173MB
hyperledger/fabric-orderer     amd64-latest                     12cd81ee965b        2 hours ago         173MB
hyperledger/fabric-orderer     latest                           12cd81ee965b        2 hours ago         173MB
hyperledger/fabric-peer        amd64-1.4.3-snapshot-1e54df2ea   5238bd93a160        2 hours ago         179MB
hyperledger/fabric-peer        amd64-latest                     5238bd93a160        2 hours ago         179MB
hyperledger/fabric-peer        latest                           5238bd93a160        2 hours ago         179MB
hyperledger/fabric-baseimage   amd64-0.4.15                     c4c532c23a50        5 months ago        1.39GB
hyperledger/fabric-baseos      amd64-0.4.15                     9d6ec11c60ff        5 months ago        145MB
root@client:~/#



root@client:~/gopath/src/github.com/hyperledger/fabric# make protos

root@client:~/gopath/src/github.com/hyperledger/fabric# make docker-list
hyperledger/fabric-peer:amd64-1.3.1-snapshot-d942308df
hyperledger/fabric-orderer:amd64-1.3.1-snapshot-d942308df
hyperledger/fabric-ccenv:amd64-1.3.1-snapshot-d942308df
hyperledger/fabric-buildenv:amd64-1.3.1-snapshot-d942308df
hyperledger/fabric-testenv:amd64-1.3.1-snapshot-d942308df
hyperledger/fabric-tools:amd64-1.3.1-snapshot-d942308df
root@client:~/gopath/src/github.com/hyperledger/fabric#

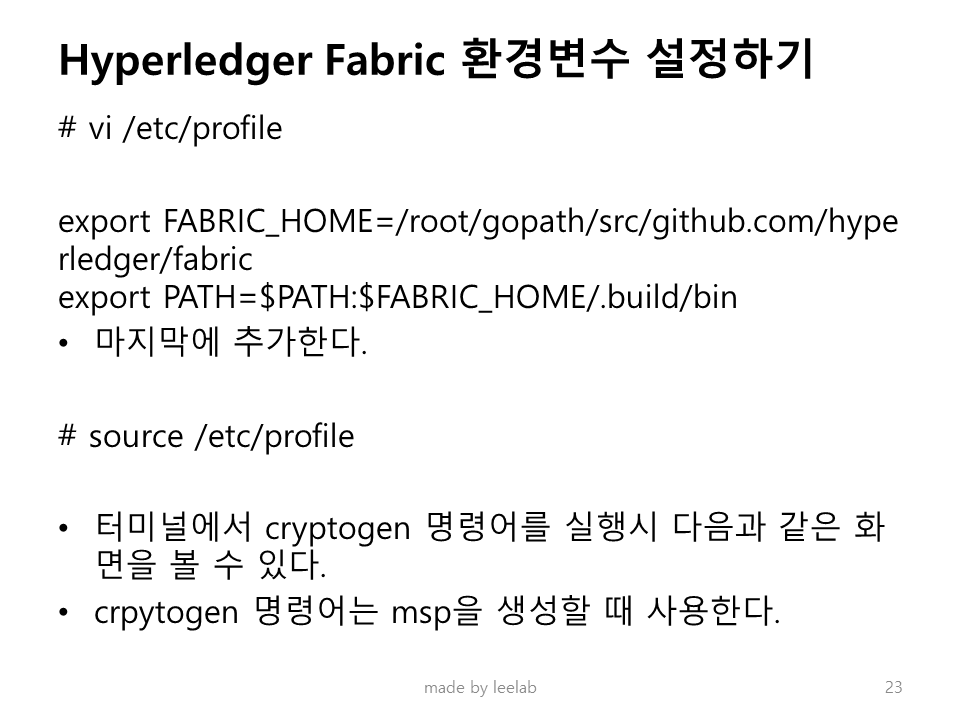

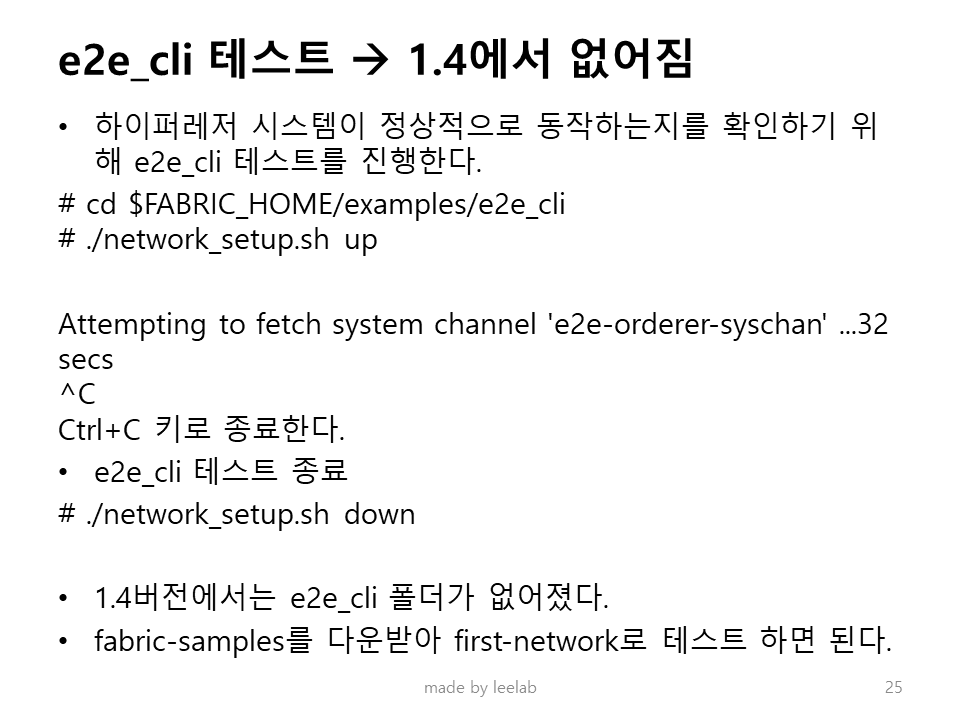

root@client:~/gopath/src/github.com/hyperledger/fabric# cd $FABRIC_HOME/examples/e2e_cli
root@client:~/gopath/src/github.com/hyperledger/fabric/examples/e2e_cli# ./network_setup.sh up



Creating cli                    ... done

 ____    _____      _      ____    _____           _____   ____    _____
/ ___|  |_   _|    / \    |  _ \  |_   _|         | ____| |___ \  | ____|
\___ \    | |     / _ \   | |_) |   | |    _____  |  _|     __) | |  _|
 ___) |   | |    / ___ \  |  _ <    | |   |_____| | |___   / __/  | |___
|____/    |_|   /_/   \_\ |_| \_\   |_|           |_____| |_____| |_____|

Channel name : mychannel
Check orderering service availability...
Attempting to fetch system channel 'e2e-orderer-syschan' ...3 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...10 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...17 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...24 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...30 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...36 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...42 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...49 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...55 secs
Attempting to fetch system channel 'e2e-orderer-syschan' ...61 secs

root@client:~/gopath/src/github.com/hyperledger/fabric/examples/e2e_cli# ./network_setup.sh down
